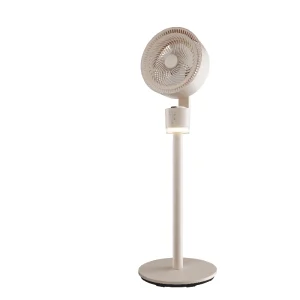

24W DC Brushless Air Circulation Fan with 9-Speed Control and 3D Auto Oscillation KF-F03
fan floor fan

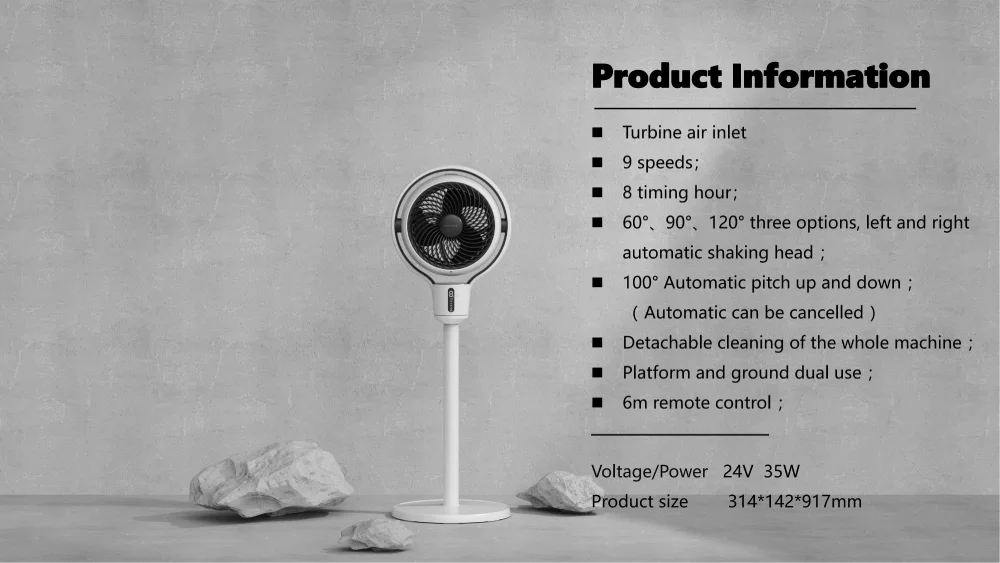

Features
● 9-speed settings with normal wind and natural wind modes
● Up to 8-hour timer

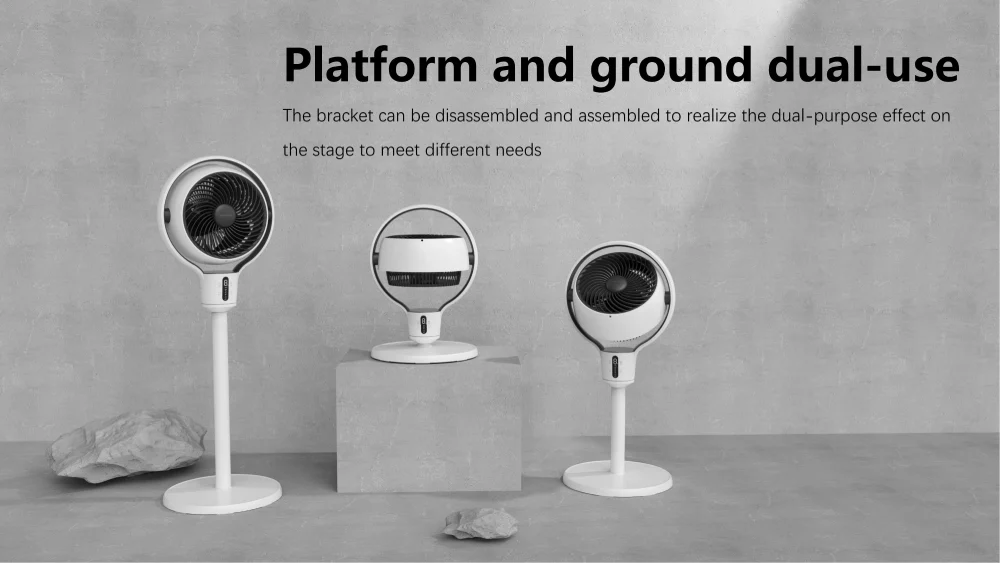

● 2-in-1 desktop and floor fan design with adjustable support stand

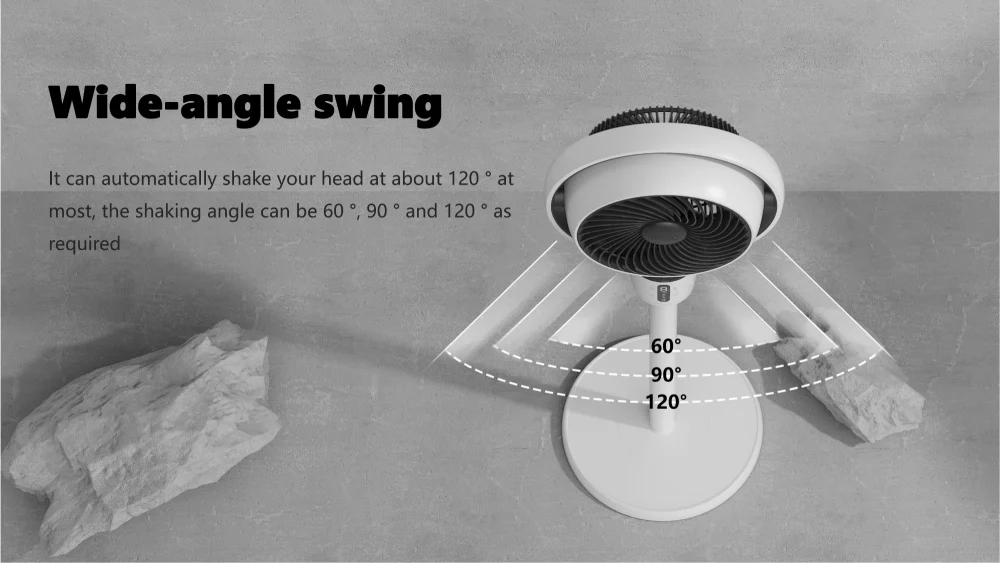

● Self-oscillating design with multi-angle rotation: 60°, 90°, and 120°

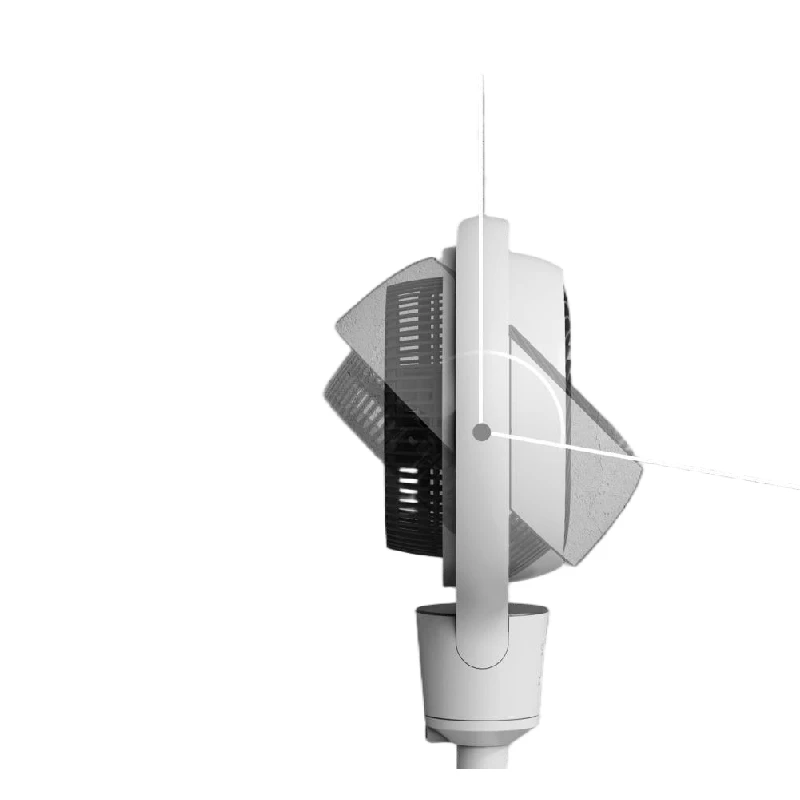

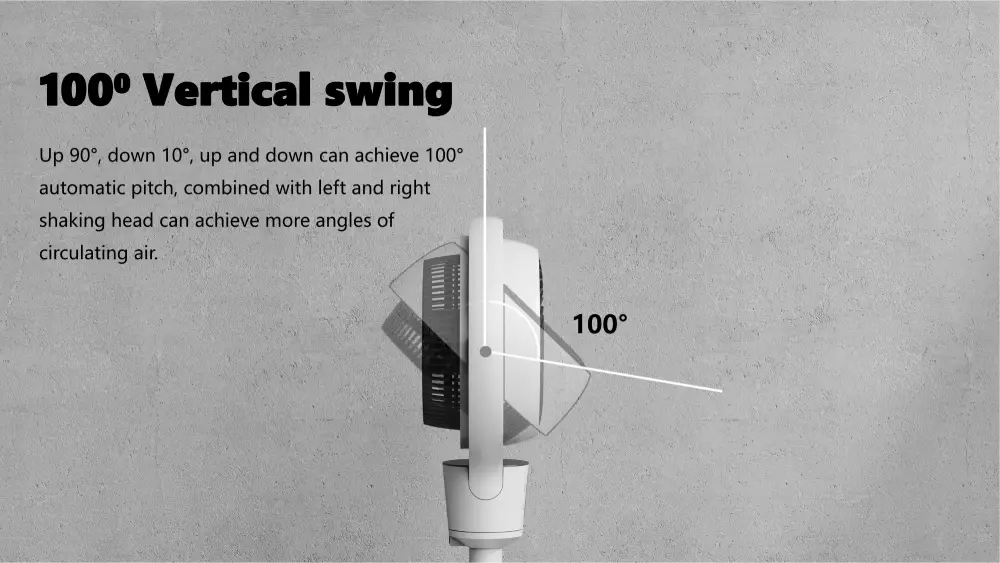

● 100° automatic tilt adjustment

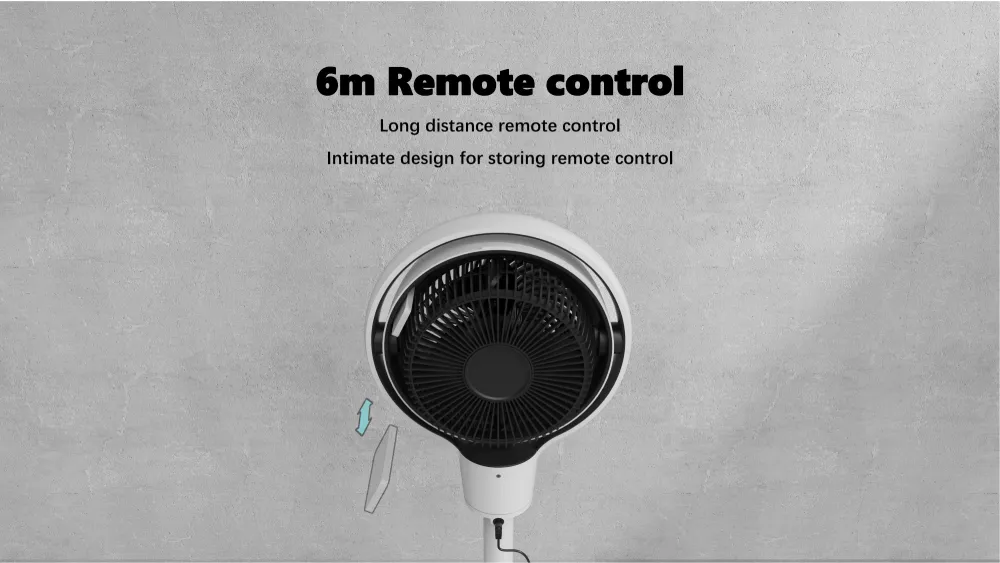

● Remote control with up to 6 m operating distance

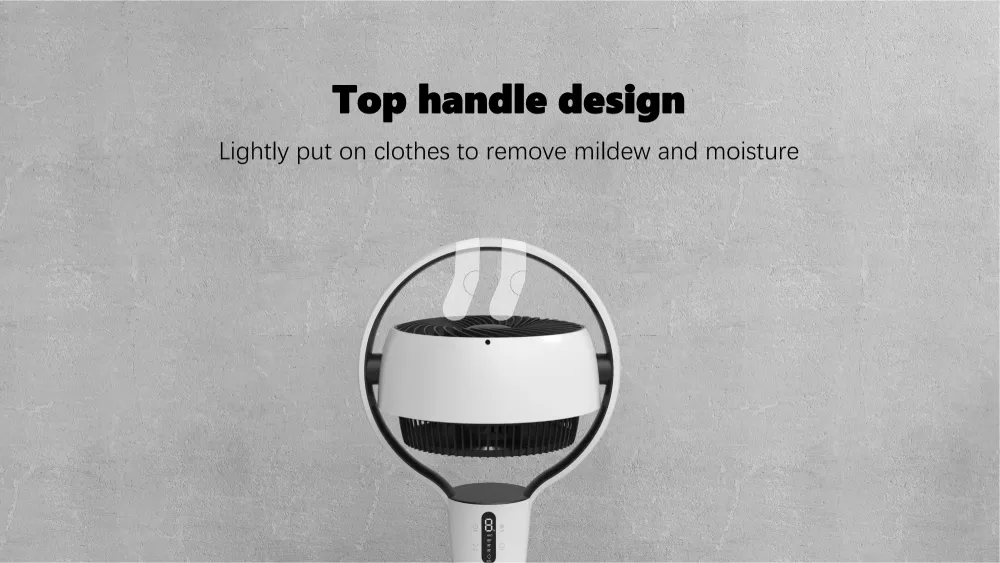

● Hidden carrying handle
● Long-range airflow up to 10 m

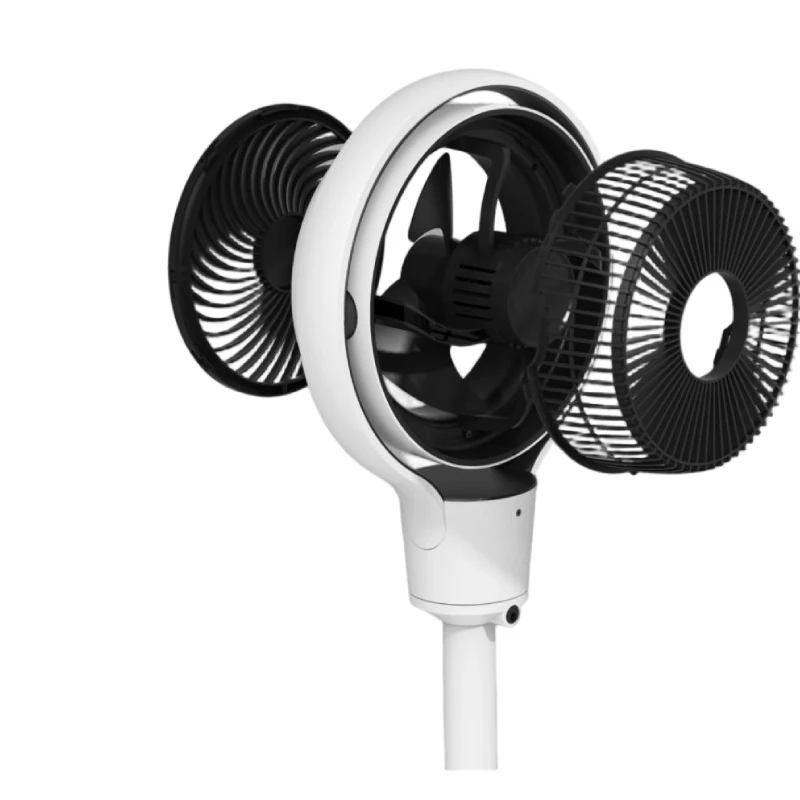

● Fully detachable components for easy cleaning
| Rated Voltage | DC 24V |
| Rated Power | 24W |
| Maximum Air Speed | 7 m/s |
| Maximum Noise Level | 75 dB |
| Color Options | Black/ White |
| Service Life | ≥3000 h |
| Speed Levels | 9 levels |
| Timer | Up to 8-hour timer |
| Main Components | DC brushless outer-rotor motor |
| Oscillation Function | Automatic left & right oscillation with 3 angle options: 60°, 90°, 120° |
| Automatic up & down tilt: 100°; Tilt range: –10° to 90° | |
| Power Adapter | 24 V / 1 A; DC plug: 5.5 × 2.1 × 10 mm, right-angle fork type; Cable length: 1.5 m |
| Control Board | Built-in buzzer, 5 control buttons, 12 indicator LEDs, 4-pin connector |
| DC Motor | DC5817 DC fan motor, DC 24 V, 2,300 r/min |
| Stepper Motor | DC 24 V, Φ5 × 3 flat shaft |
| Fan Blades | PP |
| Plastic Parts | HIPS/ PP/ POM |
| Support Pole | HIPS |
| Net Weight | 2.08 KG |
| Gross Weight (Single Unit) | 2.96 KG |
| Outer Carton Dimensions | 620*500*412mm |
| Inner Carton Dimensions | 494*201*400mm(brown carton) |
